Products description

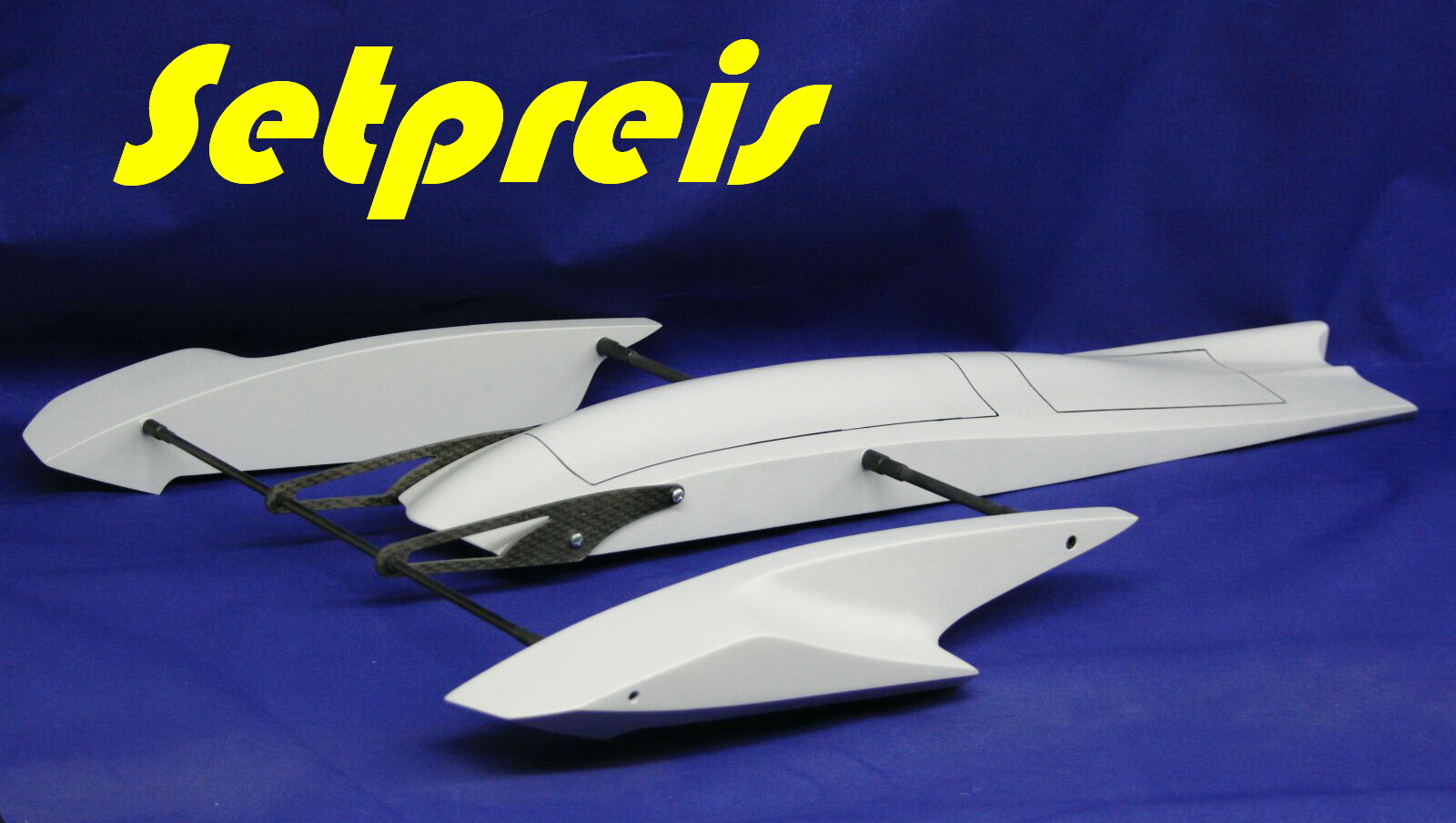

Dr. Evil Super-Hydro 2 WE complete packge kit
complete kit with hull, rudder, flexshaft system dog drive and collet
complete kit with hull, rudder, flexshaft system dog drive and collet
- suitable for motors of size Lehner 1940-1950, 2230-2240 or 3674, 4050-4065 Leopard.
Newly developed high-performance Outrigger for 4- (6) LiPo or Class II Hydro. Dr. Super Evil has been derived from our success Outrigger Mr. Krabs and was specifically designed for the competition class Hydro II. Completely new sponon construction with improved cornering stability, extra-wide body for LiPos, also suitable for speed tuning.
Super-Evil was developed hot hydro II high performance, but can also be used for fun and extreme-Speed driver in the field 4-6 LiPos.

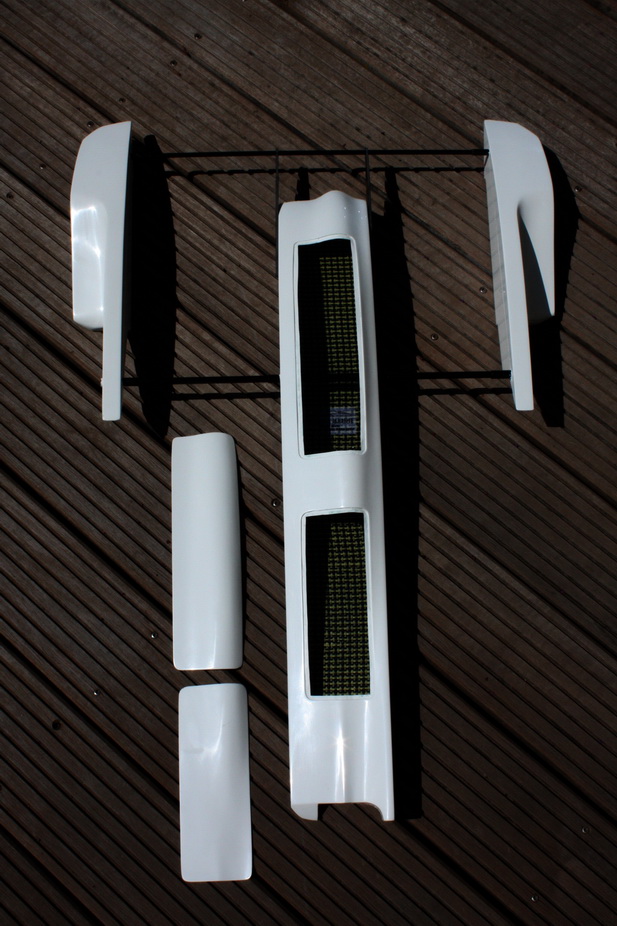

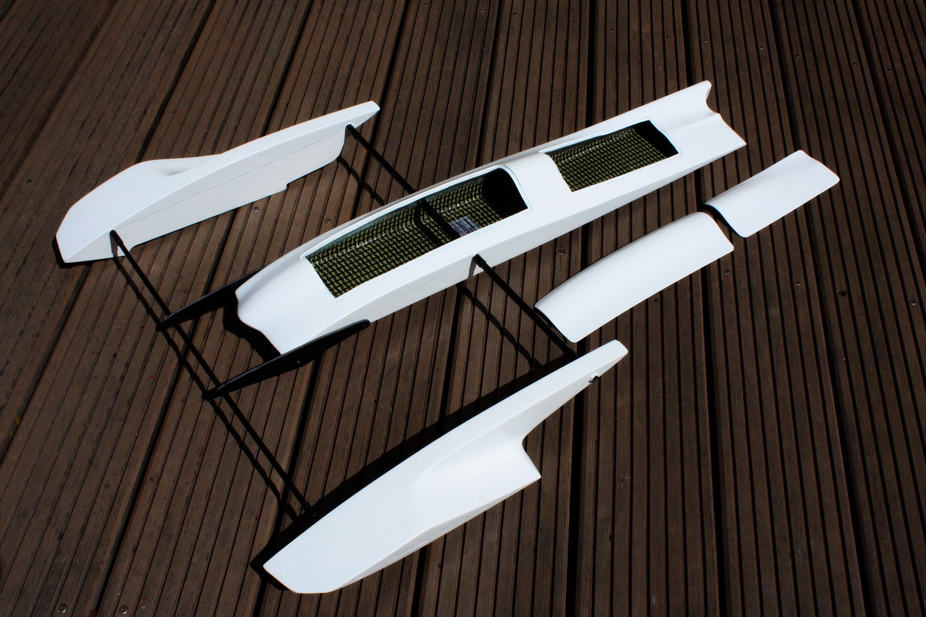

Package kit include:
Super-Evil was developed hot hydro II high performance, but can also be used for fun and extreme-Speed driver in the field 4-6 LiPos.
Package kit include:
- Hull finished in epoxy, carbon&cevlar
- Glossy white colored
- Reinforced hull bottom and float bottoms in carbon&cevlar
- 2 mm fiberglas black Sponson holders
- Carbon Tubes
- CD building instructions
- Bulkhead for engine mount, turn Fine boom, rudder, Shaft Supports
- Flex system specifically for Hydro Outrigger 2 with 4.7 mm and 4.7 flexshaft Dog Drive System
- Collet 5 / 4.7 mm
- Full-aluminum wedge rudder easy line with water pickup
Technical Specifications:
Length : 890 mm
Length (overall): * : 990 mm *
Width : 550 mm
RC : Speed Control, Rudder
Number of cells : 4-6 LiPos
Drive E-version : Lehner 1950 or Leopard 3674, 4050-4065
Competition class : Hydro II
* LOA defines the overall dimensions of the model with rudder.
More images can be found in our photo archive under
Motor Setup Leopard Sport (inexpensive China-Motor) :
4s1p = Leopard LBP3674-B/2,5D Brushless Motor 4polig -2650kV (Ideal for 3200-max.4000 mAh /Hot Setup!)
4s1p = Leopard LBP4074-B/1,5Y Brushless Motor 4polig -2650kV (5000 mAh /Hot Setup!)
6s1p = Leopard LBP4082-B/1,5Y Brushless Motor 4polig -2200kV (3200-max. 4000 mAh /Hot Setup!)
High Quality Setup LEHNER Top-Speed (highend German made) :
4s1p* = Lehner 1940 HiAmp Air&Watercooled*
4s1p* = Lehner 1950 HiAmp Air&Watercooled*
