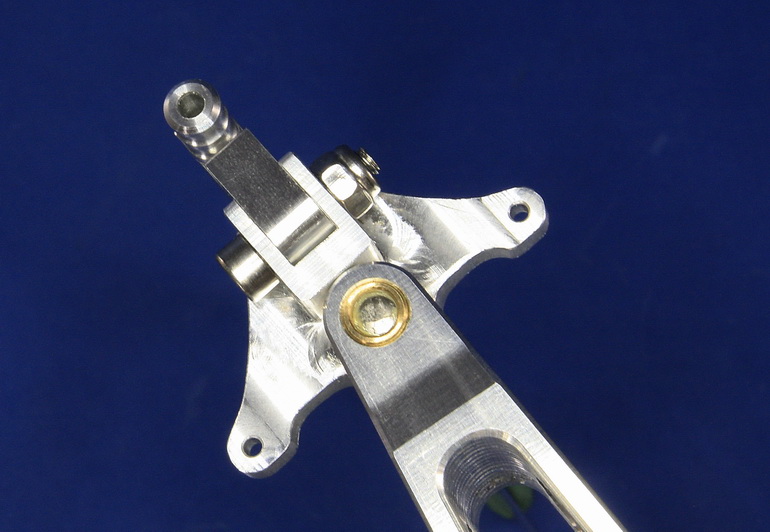

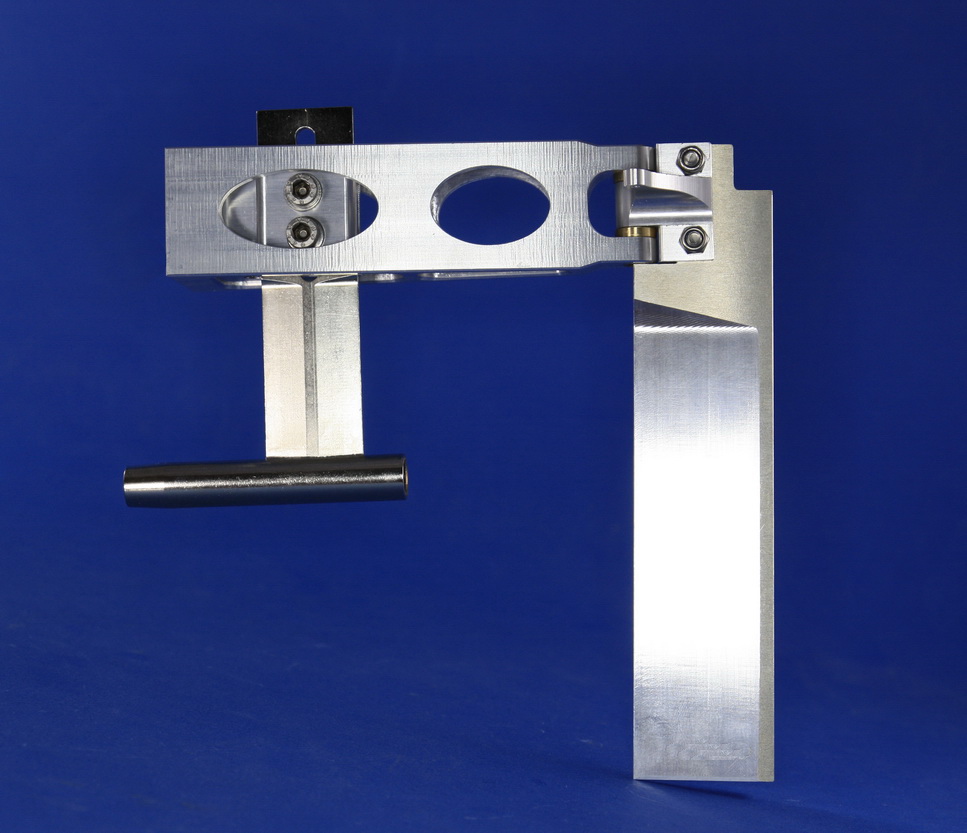

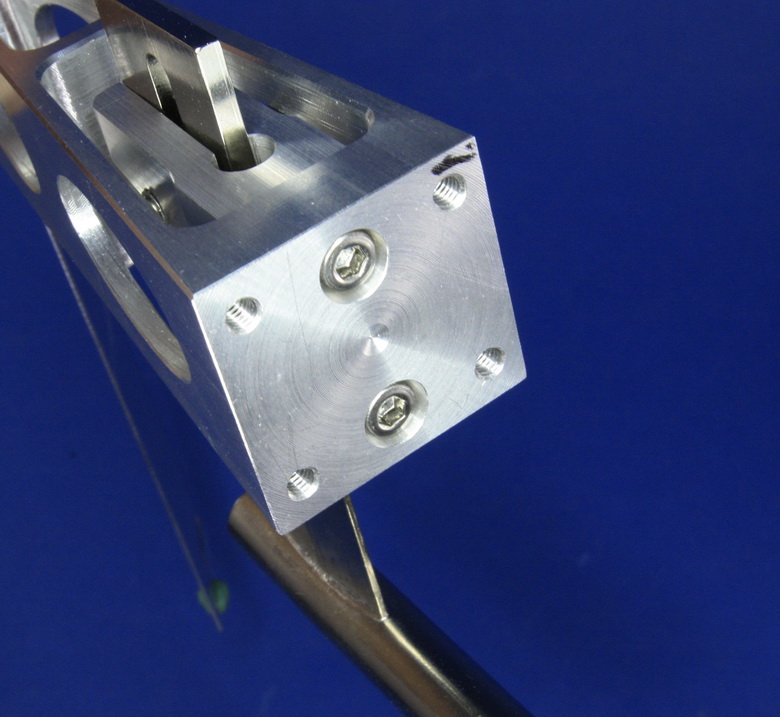

Wedgerudder size III - NEW VERSION
Our biggest rudder in the program for big speedboats from 120-190 cm in high production quality,
of course made in Germany.
- New version with CNC milled rudder blade
- enlarged water cooling hole
- slackless dowel for axle bearing
- 2 high-quality sleeve-bearing made in extra hard brass material
- Bearing system manufactured individually for this rudder system
- high-strength aluminum with 6 mm sheet thickness
- Rudder blade 160 x 36 mm
- Rudder blade holder with 2x articulation (hole to hole 38 mm)
- Active rudder blade area: 114 mm
- Maximum distance tail / rudder blade: 118 mm
- Mounting surface 34 x 33 mm
- Weight: 174 g
- Completely preassembled and hand fixed
- Shear pin safety mechanism (rudder blade works in collision with an obstacle independently)
- Mounting material included in stainless steel quality
- Optional with or without water cooling in the rudder blade (selection Info see options)
Quality made in Germany
