T-5 Hydroplane in Carbon&Aramid Sandwich

499,00 EUR
19 % VAT incl. excl. Shipping costs
Product no.: 23088
Stock:
Manufacturer: Hydro&Marine O. Siess
More products of: Hydro&Marine O. Siess


Products description

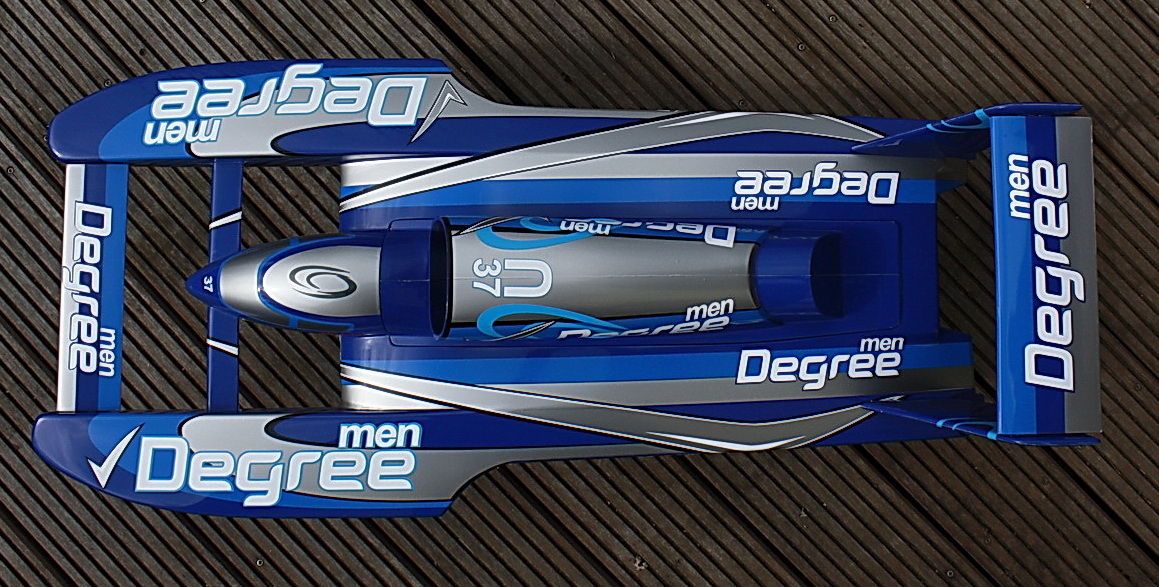

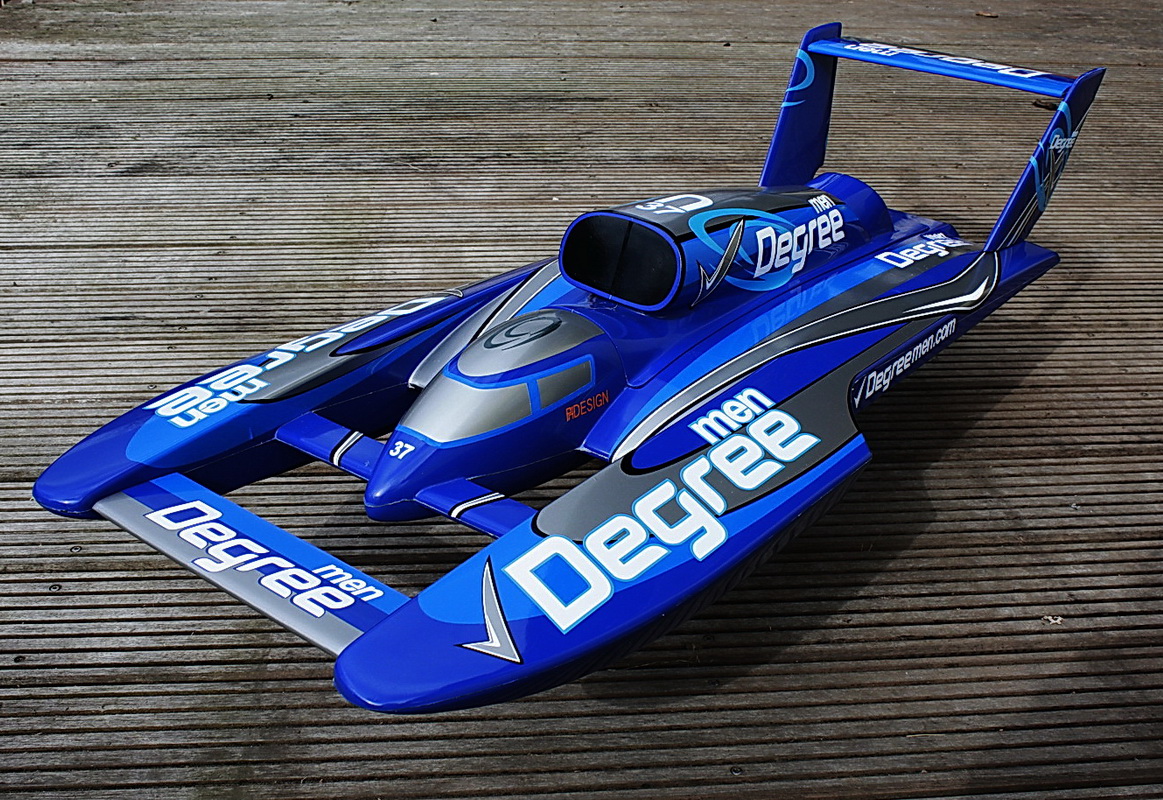

T-5 Hydroplane Fiberglass-Hull  Edition blue version
Semi-scale five-point hydroplane of Unlimited Hydroplane class last generation.



Model:

Designed for E-drives of 6-8 cells LiPo



Delivery:

  • T-5 Hydroplane in Carbon&Aramid sandwich composite
  • White gel coat
  • Hull & deck integrally bonded wet in wet
(Spoiler not supplied)



Technical Specifications:

Length:935 mm
Length (o.a.*):1035 mm *
Width:445 mm
RC:Rudder, speed control, mixture
E-version:
Motorsizes 4082-4092 Leopard or for high performance
Lehner 2250-2260
Motor-Hotline 0049- (0) 9405-6000
Number of cells:6 - 8 LiPo 4000-5000 mAh

* LOA defines the overall dimensions of the model with rudder.

More images can be found in our photo archive under wink



DMAX "Die Modellbauer" visiting Hydro & Marine
In the summer of 2014 was an editorial team of the TV channel D-MAX "The modeler" with us several times to visit and have filmed the development of T-5 Degree.



Setup Leopard Sport (inexpensive China-Motor) :
6-7s1p  =  Leopard LBP4082/2Y Brushless Motor 4polig -1600kV-
7-8s1p  =  Leopard LBP4092-B/2.5Y Brushless Motor 4pole -1390kV-


Setup LEHNER Top-Speed Abstimmung (high-End Motor - made in Germany) :
6s1p*-7 Windungen  = Lehner 2250 HiAmp Air&Watercooled
8s1p*-9 Windungen   = Lehner 2260 HiAmp Air&Watercooled (our Reference-Setup H&M )


Setup LEHNER Top-Speed (High-End Motor - made in Germany)- Hot :
8s1p*-8 Windungen   = Lehner 2260 HiAmp Air&Watercooled
